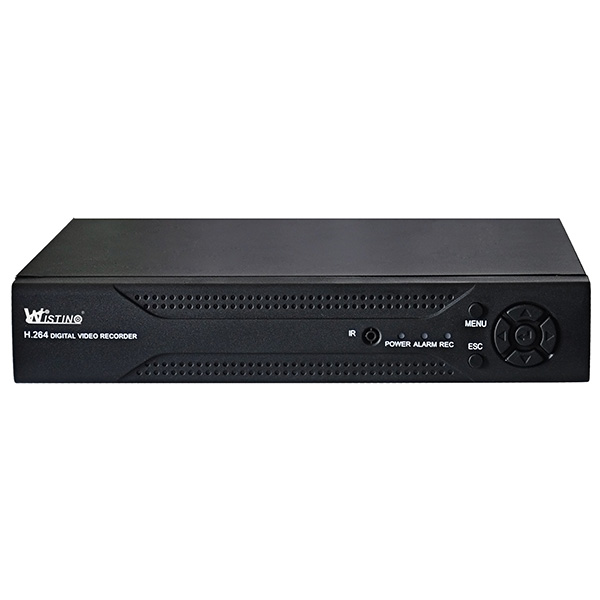

WIS7104 |
|
|
System |
|
|
Operating System |
Embedded LINUX |
|
Main processor |
Hi3535 |
|
Video&Audio |
|
|
IP Camera Input |
4 channel |
|
Bandwidth of Network Video |
64 Mbps |
|
Resolution |
4*1080P/25fps; 4*720P/25fps; |
|
Audio in |
1 channel |
|
Audio out |
1 channel |
|
Display |
|
|
Interface |
1.HDMI, 1 VGA |
|
User interface |
support 16-bit true color graphical menu interface and mouse operation |
|
Resolution |
800*600;1024*768;1280*720; 1280*1024;1440*900;1920*1080 |
|
Display Split |
1/4 |
|
OSD |
Channel title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
|
Video Compression |
H.264 |
|
Audio Compression |
G.711a |
|
Record Mode |
Manual, Auto(Regular(Continuous), MD, Alarm), Off |
|
Record Interval |
1~120min (default: 60 min), Pre-record: 1~30sec |
|
Alarm |
|
|
Alarm input |
N/A |
|
Alarm output |
N/A |
|
Trigger Events |
Recording，Alarm，Video Push，Email, Buzzer |
|
Video Detection |
Motion Detect, Video Blind, Video Loss |
|
Abnormal |
HDD loss, Low HDD capacity, Net disconnection, IP conflict, HDD error |
|
Playback & Backup |
|
|
Sync Playback |
4*1080P/25fps; 4*720P/25fps; |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second) |
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / Network |
|
Network |
|
|
Ethernet |
RJ-45 port (10/100/1000M) |
|
Network Functions |
HTTP, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS, FTP, RTSP, SMTP, |
|
Mobile Phone |
Camviews (IPhone, IPad, Android) |
|
Max.User Access |
10 users |
|
Storage |
|
|
Internal HDD |
2 SATA ports, up to 8TB |
|
Auxiliary Interface |
|
|
USB Interface |
2 ports, USB2.0 |
|
RS485 |
1 port, For PTZ control |
|
General |
|
|
Power Supply |
DC12V/4A |
|
Power Consumption |
24W(without HDD) |
|
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
|
Dimension(W*D*H) |
1U，335*259*55(mm) |
|
Weight |
2.0-2.5kg(without HDD) |
