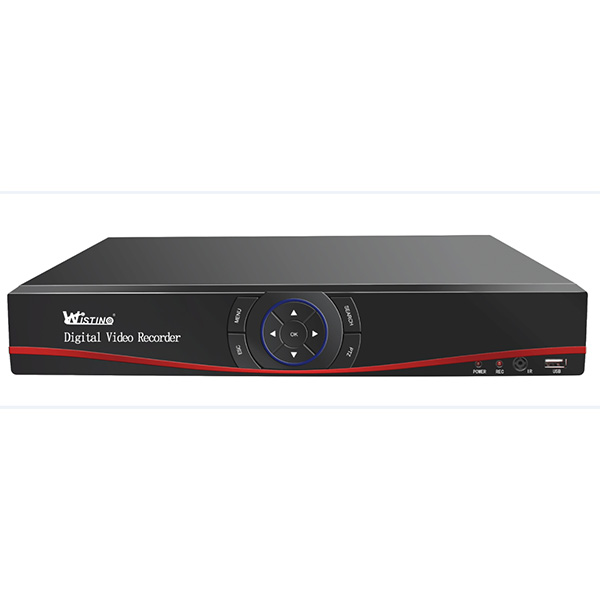

WIS7008

System

Operating System

Embedded LINUX

Video&Audio

IP Camera Input

9 channel

Bandwidth of Network Video

64Mbps

Resolution

9*1080P/25fps; 9*960P/25fps

Audio in

N/A

Audio out

N/A

Display

Interface

1.HDMI, 1 VGA,

User interface

support 16-bit true color graphical menu interface and mouse operation

Resolution

1024*768;1280*720; 1280*1024;1440*900;1920*1080

Display Split

1/4/8

OSD

Channel title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video Compression

H.264

Audio Compression

G.711a

Record Mode

Manual, Auto(Regular(Continuous), MD, Alarm), Off

Record Interval

1~120min (default: 60 min), Pre-record: 1~30sec

Alarm

Trigger Events

Recording，Alarm，Video Push，Email, Buzzer

Video Detection

Motion Detect, Video Blind, Video Loss

Abnormal

HDD loss, Low HDD capacity, Net disconnection, IP conflict, HDD error

Playback & Backup

Sync Playback

4*960P/25fps; 2*1080P/25fps

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device / Network

Network

Ethernet

RJ-45 port (10/100M)

Network Functions

HTTP, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS, FTP, RTSP, SMTP, 3G, Wifi

Mobile Phone

CamViews (IPhone, IPad, Android)

Max.User Access

10 users

Storage

Internal HDD

1 SATA ports,  up to 4TB

Auxiliary Interface

USB Interface

2 ports, USB2.0

RS485

1 port, For PTZ control

General

Power Supply

DC12V/2A

Power Consumption

10W(without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa

Dimension(W*D*H)

1U，255*244*42 (mm)

Weight

1.0-1.5kg(without HDD)
